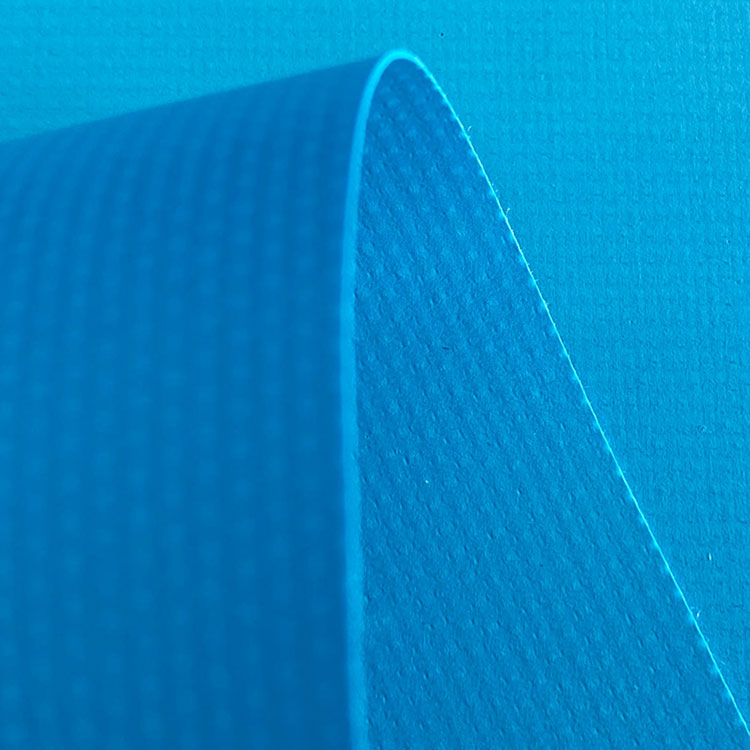

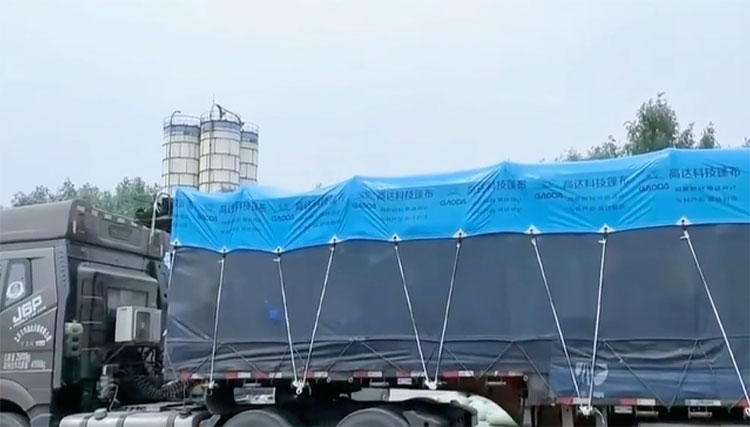

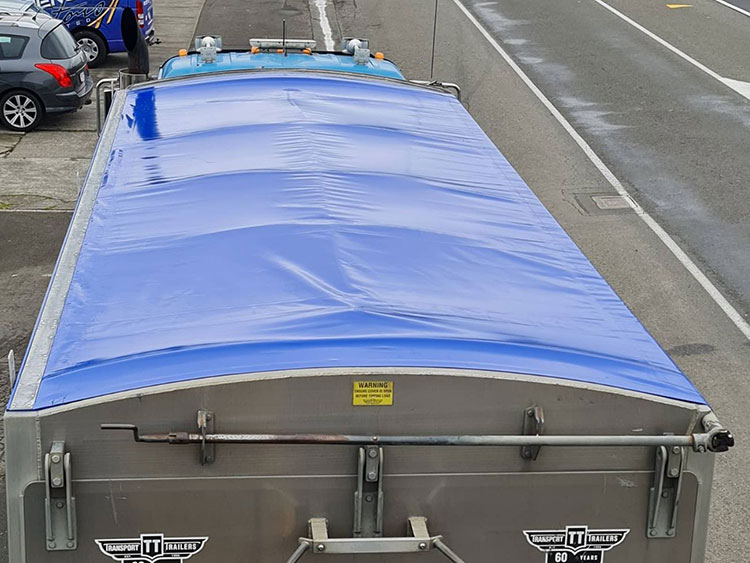

FC400-TypeⅡis a lightweight single-sided FC coating material specifically developed for truck tarpaulin applications.

Send Inquiry

Product Description

The back side of the FC400-TypeⅡ adopts FC coating, which significantly improves the wear and tear resistance of the material in direct contact with the truck body. At the same time, the top side continues to use PVC coating, ensuring the basic strength of the top side while also maintaining the overall cost-effectiveness.

Item Standard Unit Result
Weight GB/T 4669-2008 g/m2 400
Coating - Front Side: PVC
Back Side: FC
Base Fabric DIN EN ISO 2060 - 500D*1000D
Tensile Strength DIN53354 N/5CM 2100/1800
Tear Strength DIN53363 N 210/230
Adhesion Strength DIN53357 N/5CM 110
Temperature -  -60 ~ +80
Abrasion Resistance ASTM D3389
(Type H-22, 500g)
r ≥2000
Acid and Alkali Resistance GB/T 11547-2008
( 0.01mol/L HCl / 0.01mol/L NaOH, 23±2℃, 72h )
- Pass
Air-Tightness Under Standard Atmospheric Pressure In 10Days % ≤ 5%
Other Anti-UV Grade=7
The above are the technical parameters for the standard configuration of the product.
Information contained in this document is based on our general test result and is given in good faith.
But we are unable to accept responsibility in respect to factors which are outside our knowledge or control.

Anti-UV Grade>7
10 ^ 7 Anti-Static Level
Anti-Named Fungus&Mildew Type
Environmental Friendly Additives
 Eco–Friendly Treatment
REACH, RoHS,6P (EN14372), 3P (EN14372)
 Surface Treatment
PMMA/Acrylic, PVDF, TiO2
Silver Lacquer, Printable Lacquer
 Flame Retardant Options
DIN4102-B1, NFPA701, NF P - M2
GB8624-B1, CA Title 19, FMVSS 302, ASTM E84
DIN4102-B2, GB8624-B2, Basic FR
