RX5000B Blockout Architectural Membrane

RX5000B Blockout Architectural Membrane is the blockout version of RX5000 General Architectural Membrane. The product has added a blockout layer to achieve a completely opaque usage effect.

Send Inquiry

Product Description

The RX5000B Blockout Architectural Membrane uses Panama woven fabric specifically designed for architectural membrane, which can provide a tensile strength of 5000N/5cm for the material. At the same time, the RX5000B Blockout Architectural Membrane adopts the PVC formula of architectural membrane materials specially developed by Gaoda Group, combined with various surface treatment options such as PVDF and PMMA, to ensure the outdoor weather resistance and service life of the product.

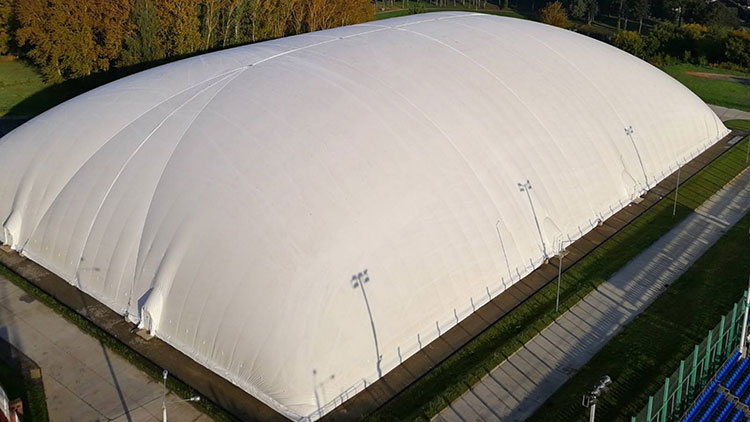

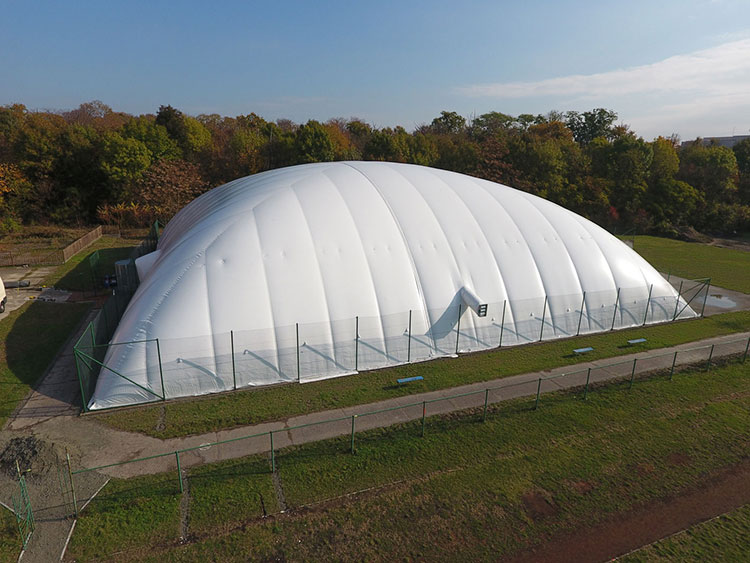

The RX5000B Blockout Architectural Membrane is often used in scenarios that require complete light isolation for tensile membrane structures, air dome structures, and fixed warehouse buildings.

Item	Standard	Unit	Result
Weight	GB/T 4669-2008	g/m2	1150
Thickness	GB/T3820-1997	mm	0.93
Tensile Strength	DIN53354	N/5CM	5000/5000
Tear Strength	DIN53363	N	700/700
Adhesion Strength	DIN53357	N/5CM	110
Transmittance	FZ/T 01009-2008	%	0
Temperature	-	℃	-40 ~ +70
Flame Retardant	DIN4102	B1
Surface Treatment	-	PVDF
Other	Anti-UV, Anti-Mildew
The above are the technical parameters for the standard configuration of the product. Information contained in this document is based on our general test result and is given in good faith. But we are unable to accept responsibility in respect to factors which are outside our knowledge or control.
Customization	Anti-Wicking
	Anti-UV Grade≥7
	Anti-Extreme Cold -50℃
	Anti-Named Fungus&Mildew Type Environmental Friendly Additives
	Eco–Friendly Treatment REACH, RoHS,6P (EN14372), 3P (EN14372)
	Surface Treatment PMMA/Acrylic, PVDF, TiO2 Silver Lacquer, Printable Lacquer
	Flame Retardant Options DIN4102-B1, NFPA701, NF P - M2 GB8624-B1, CA Title 19, FMVSS 302, ASTM E84 DIN4102-B2, GB8624-B2, Basic FR
