RX8000 Architectural Membrane is an architectural membrane material product produced for high-strength design requirements projects, with a tensile strength of up to 8000N/5cm.
The RX8000 Architectural Membrane adopts reinforced Panama woven fabric, combined with upgraded architectural membrane material formula and enhanced surface treatment process, which gives the product excellent outdoor weather resistance and greatly improves its service life.

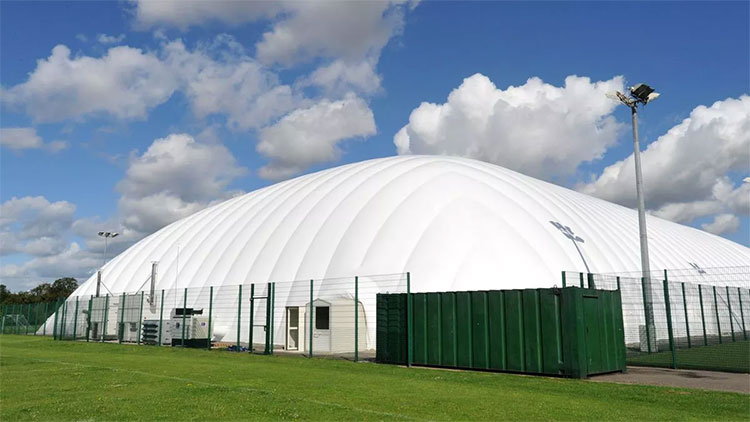

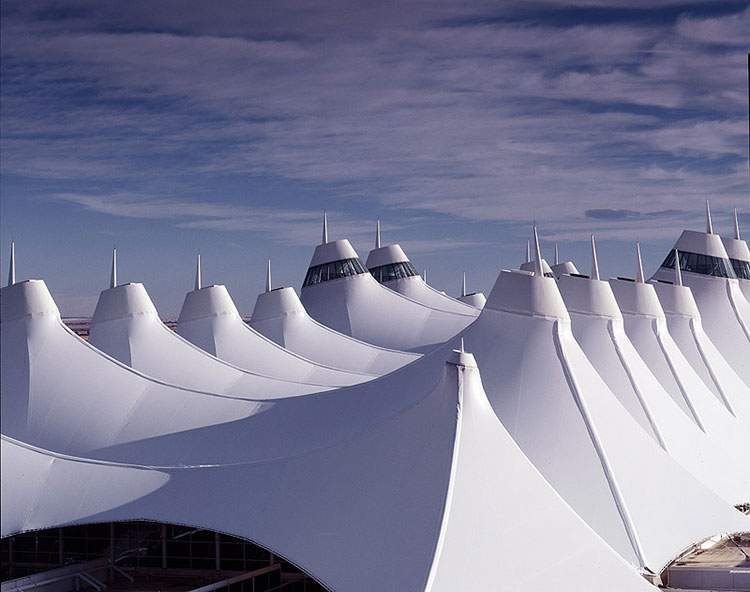

The RX8000 Architectural Membrane is often used as an architectural membrane material for large and medium-sized air dome structures, tensile membrane structures, and internal pressure structures.
Item | Standard | Unit | Result | |||||
Weight | GB/T 4669-2008 | g/m2 | 1350 | |||||
Thickness | GB/T3820-1997 | mm | 1.07 | |||||
Tensile Strength | DIN53354 | N/5CM | 8000/7500 | |||||
Tear Strength | DIN53363 | N | 1000/1000 | |||||
Adhesion Strength | DIN53357 | N/5CM | 120 | |||||
Transmittance | FZ/T 01009-2008 | % | 6±3 | |||||
Temperature | - | ℃ | -40 ~ +70 | |||||
Flame Retardant | DIN4102 | B1 | ||||||
Surface Treatment | - | PVDF | ||||||
Other | Anti-UV, Anti-Mildew | |||||||
The above are the technical parameters for the standard configuration of the product. Information contained in this document is based on our general test result and is given in good faith. But we are unable to accept responsibility in respect to factors which are outside our knowledge or control. |
||||||||
Customization | Anti-Wicking | |||||||
Anti-UV Grade≥7 | ||||||||
Anti-Extreme Cold -50℃ | ||||||||
Anti-Named Fungus&Mildew Type Environmental Friendly Additives |
||||||||
Eco–Friendly Treatment REACH, RoHS,6P (EN14372), 3P (EN14372) |
||||||||
Surface Treatment PMMA/Acrylic, PVDF, TiO2 Silver Lacquer处, Printable Lacquer |
||||||||
Flame Retardant Options DIN4102-B1, NFPA701, NF P - M2 GB8624-B1, CA Title 19, FMVSS 302, ASTM E84 DIN4102-B2, GB8624-B2, Basic FR |
