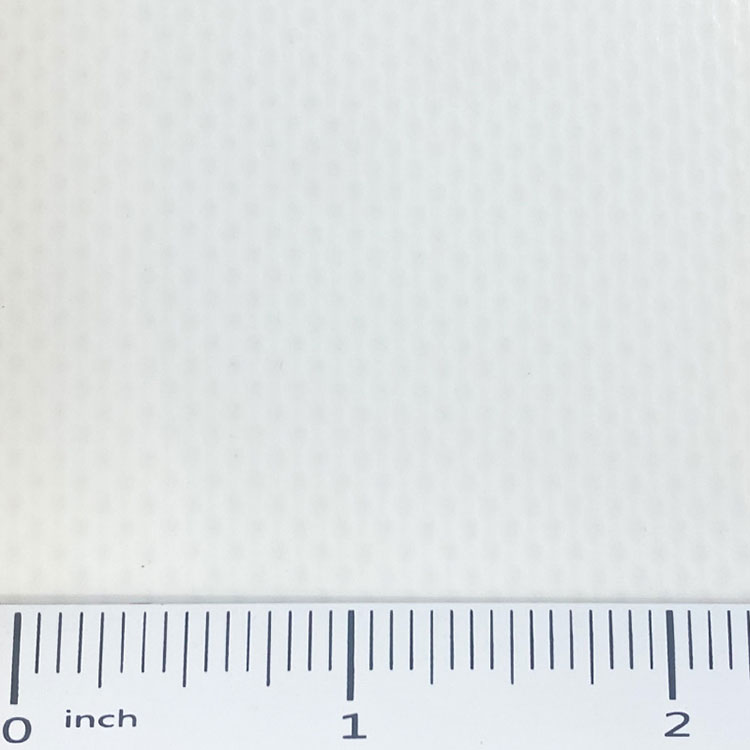

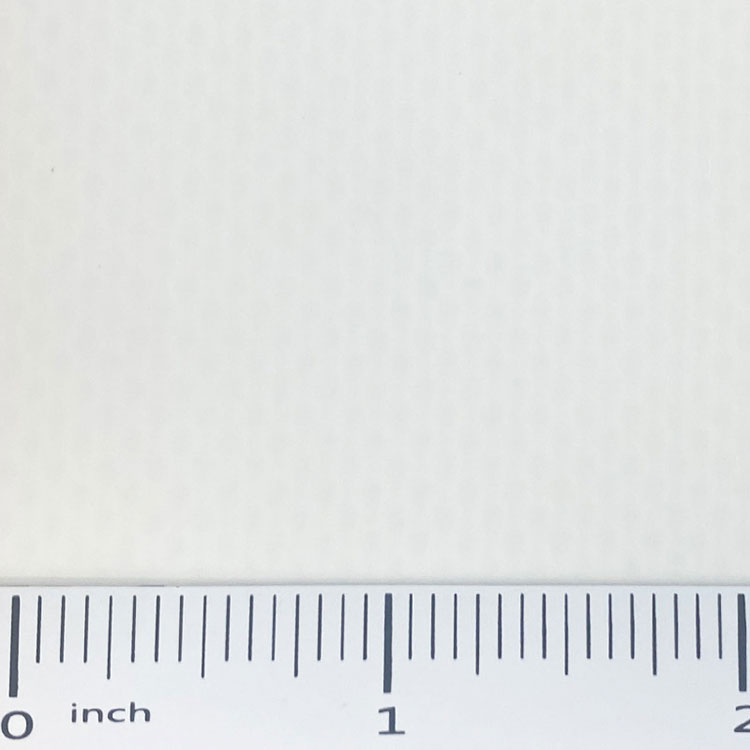

RX6000 Architectural Membrane

RX6000 Architectural Membrane is an architectural membrane material product suitable for conventional tensile membrane structure and air dome structure projects. The RX6000 Architectural Membrane adopts the PVC formula of architectural membrane materials specially developed by Gaoda Group, combined with high-strength Panama woven fabric and PVDF surface treatment, making the RX6000 Architectural Membrane have excellent construction adaptability and outdoor weather resistance.

Send Inquiry

Product Description

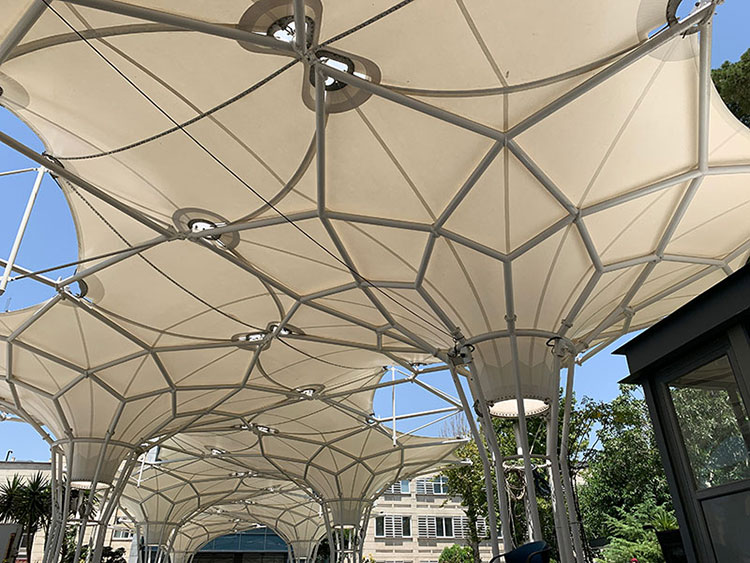

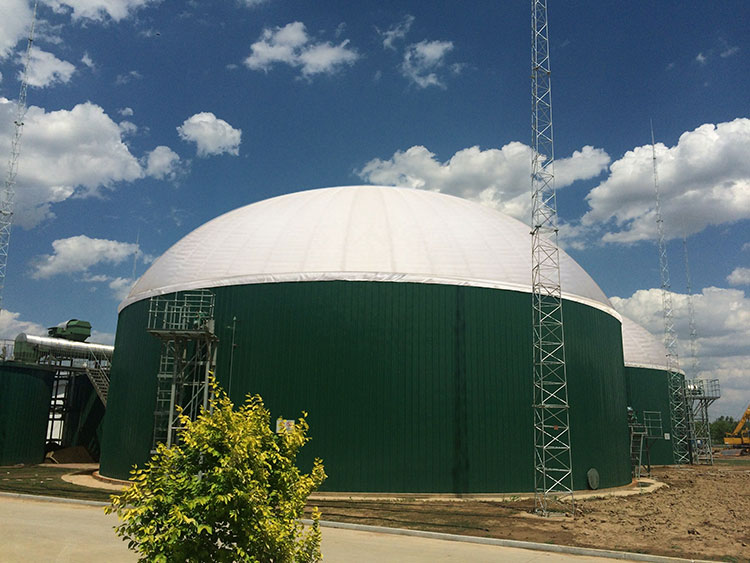

The RX6000 Architectural Membrane is often used in various specific application scenarios, such as architectural art modeling, sports stadium roofs, umbrella-type building roofs, tensile car sheds, air dome sports venues, air dome coal sheds, air dome biogas storage tanks, etc.

Item	Standard	Unit	Result
Weight	GB/T 4669-2008	g/m2	1250
Thickness	GB/T3820-1997	mm	0.98
Tensile Strength	DIN53354	N/5CM	6000/6000
Tear Strength	DIN53363	N	800/800
Adhesion Strength	DIN53357	N/5CM	120
Transmittance	FZ/T 01009-2008	%	6±3
Temperature	-	℃	-40 ~ +70
Flame Retardant	DIN4102	B1
Surface Treatment	-	PVDF
Other	Anti-UV, Anti-Mildew
The above are the technical parameters for the standard configuration of the product. Information contained in this document is based on our general test result and is given in good faith. But we are unable to accept responsibility in respect to factors which are outside our knowledge or control.
Customization	Anti-Wicking
	Anti-UV Grade≥7
	Anti-Extreme Cold -50℃
	Anti-Named Fungus&Mildew Type Environmental Friendly Additives
	Eco–Friendly Treatment REACH, RoHS,6P (EN14372), 3P (EN14372)
	Surface Treatment PMMA/Acrylic, PVDF, TiO2 Silver Lacquer, Printable Lacquer
	Flame Retardant Options DIN4102-B1, NFPA701, NF P - M2 GB8624-B1, CA Title 19, FMVSS 302, ASTM E84 DIN4102-B2, GB8624-B2, Basic FR
