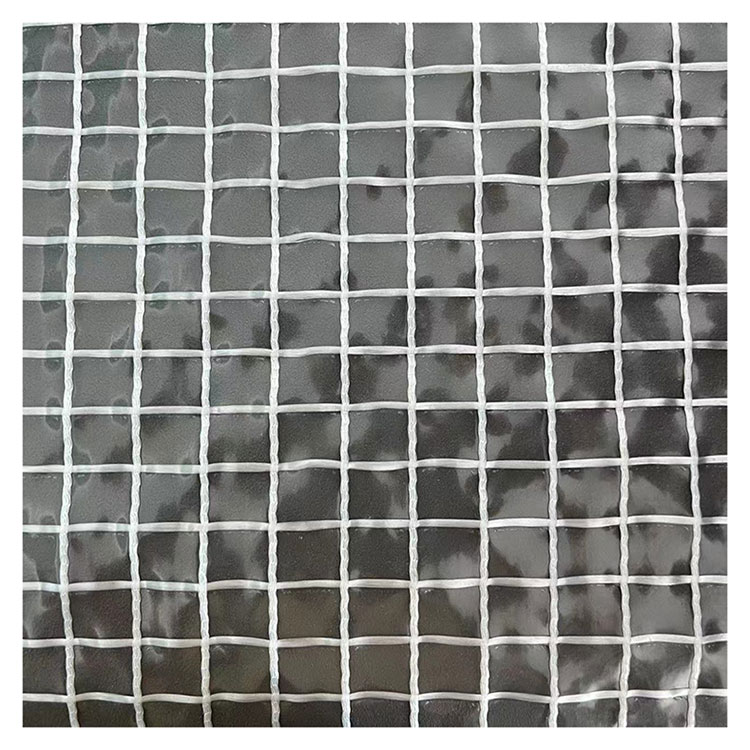

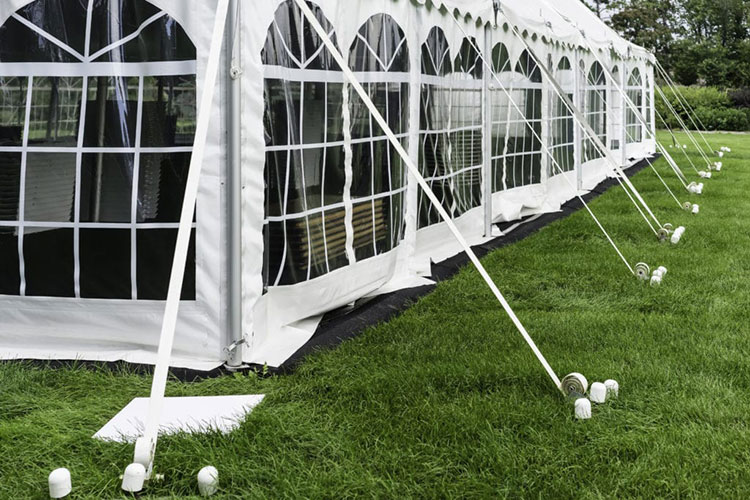

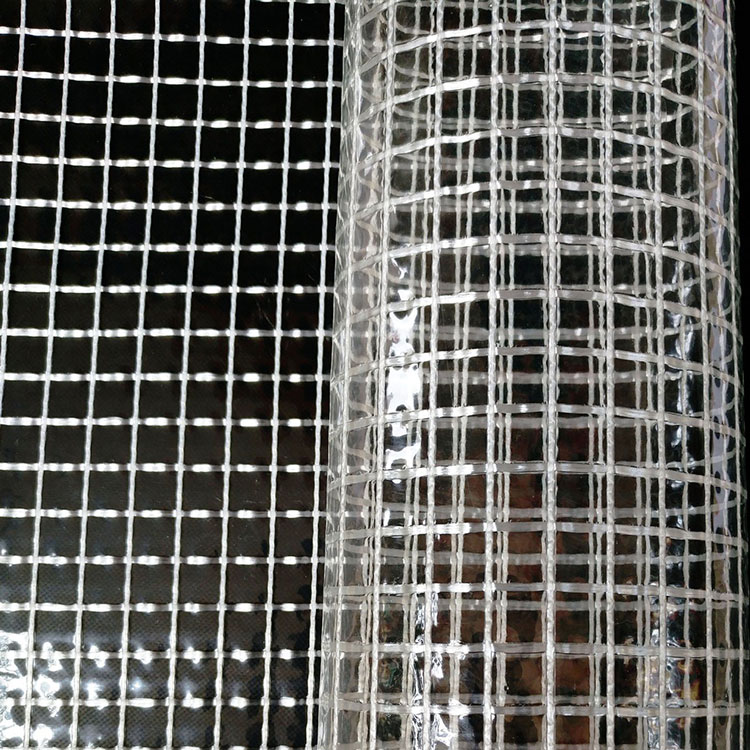

TS500C Clear Tent Fabric is a material specifically used for producing tent door curtains and tent window curtains, and is a supporting material for marquee and tent facilities.
In addition, the TS500C Clear Tent Fabric is also suitable for various transparent material application scenarios, accepting customization of different strength level, material background colors, and light transmittance rate.
The headquarters of Zhejiang Gaoda New Material Co., Ltd. (Gaoda Group) are in Haining City, Zhejiang Province. Since the founding team's entry into the warp knitting sector in 1999, Gaoda Group has amassed more than two decades of professional expertise.
Item | Standard | Unit | Result | |||||
Weight | GB/T 4669-2008 | g/m2 | 500 | |||||
Base Fabric | DIN EN ISO 2060 | - | 1000D*1000D 3*3 | |||||
Tensile Strength | DIN53354 | N/5CM | 1500/1500 | |||||
Tear Strength | DIN53363 | N | 100/100 | |||||
Adhesion Strength | DIN53357 | N/5CM | 40 | |||||
Transmittance | FZ/T 01009-2008 | % | Super Clear | |||||
Temperature | - | ℃ | -25 ~ +70 | |||||
Other | Anti-UV | |||||||
The above are the technical parameters for the standard configuration of the product. Information contained in this document is based on our general test result and is given in good faith. But we are unable to accept responsibility in respect to factors which are outside our knowledge or control. |
||||||||
Customization | Anti-Wicking | |||||||
Anti-UV Grade≥7 |
||||||||
Anti-Mildew Anti-Named Fungus&Mildew Type Environmental Friendly Additives |
||||||||
Eco–Friendly Treatment REACH, RoHS,6P (EN14372), 3P (EN14372) |
||||||||
Surface Treatment PMMA/Acrylic, PVDF |
||||||||
Flame Retardant Options DIN4102-B1, NFPA701, NF P - M2 GB8624-B1, CA Title 19, FMVSS 302, ASTM E84 DIN4102-B2, GB8624-B2, Basic FR |
