RX2500 Inner Architectural Membrane

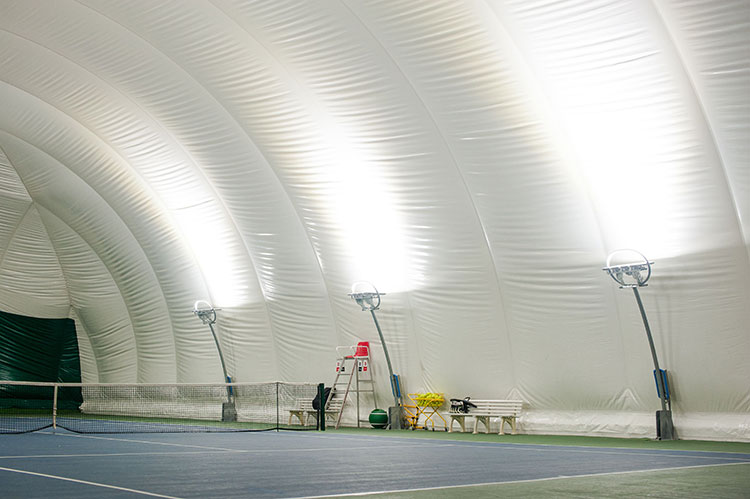

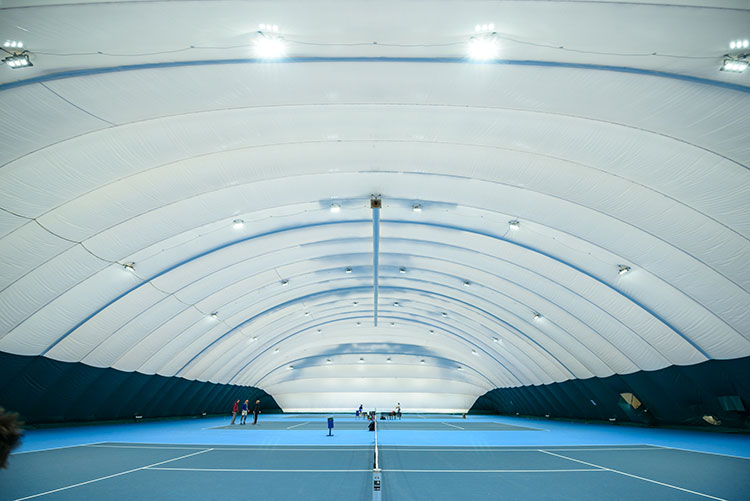

RX2500 Inner Architectural Membrane material is a membrane product used as the inner membrane of air dome structures. Gaoda Group is a leading example firm in the sector and has successfully obtained ISO9001 certification.

Send Inquiry

Product Description

The RX2500 Inner Architectural Membrane has the characteristics of high strength, strong weather resistance, and convenient cleaning and maintenance. The RX2500 Inner Architectural Membrane product is produced using the specialized formula of Gaoda Group's architectural membrane materials, combined with surface treatments such as PMMA and PVDF, which can further enhance the service life of the product as an architectural membrane material.

Item	Standard	Unit	Result
Weight	GB/T 4669-2008	g/m2	650
Thickness	GB/T3820-1997	mm	0.51
Tensile Strength	DIN53354	N/5CM	2500/2500
Tear Strength	DIN53363	N	300/300
Adhesion Strength	DIN53357	N/5CM	100
Transmittance	FZ/T 01009-2008	%	13
Temperature	-	℃	-40 ~ +70
Flame Retardant	DIN4102	B1
Surface Treatment	-	PMMA
Other	Anti-UV, Anti-Mildew
The above are the technical parameters for the standard configuration of the product. Information contained in this document is based on our general test result and is given in good faith. But we are unable to accept responsibility in respect to factors which are outside our knowledge or control.
Customization	Anti-Wicking
	Anti-UV Grade≥7
	Anti-Extreme Cold -50℃
	Anti-Named Fungus&Mildew Type Environmental Friendly Additives
	Eco–Friendly Treatment REACH, RoHS,6P (EN14372), 3P (EN14372)
	Surface Treatment PMMA/Acrylic, PVDF, TiO2 Silver Lacquer, Printable Lacquer
	Flame Retardant Options DIN4102-B1, NFPA701, NF P - M2 GB8624-B1, CA Title 19, FMVSS 302, ASTM E84 DIN4102-B2, GB8624-B2, Basic FR
