RX3500 Economical Architectural Membrane

RX3500 Economical Architectural Membrane is an economical architectural membrane material product suitable for small and medium-sized tensile membrane structures, air dome structures and building warehouse projects.

Send Inquiry

Product Description

The RX3500 Economical Architectural Membrane uses entry-level Panama woven fabric, which can achieve a tensile strength of 3500N/5cm. The product is produced using the enhanced PVC architectural membrane material formula of Gaoda Group, which particularly improves the strength loss of the material in long-term light environments and the anti-cold & cracking performance in low-temperature environments. Combined with surface treatments such as PMMA and PVDF, it ensures the outdoor weather resistance of the material, meets the requirements for use as a architectural membrane material, and is cost-effective.

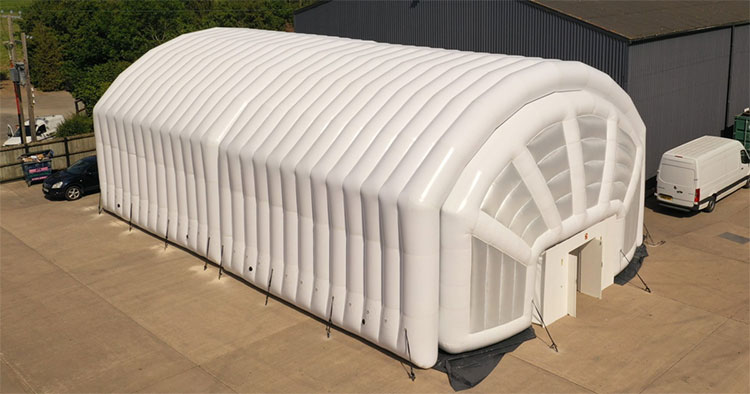

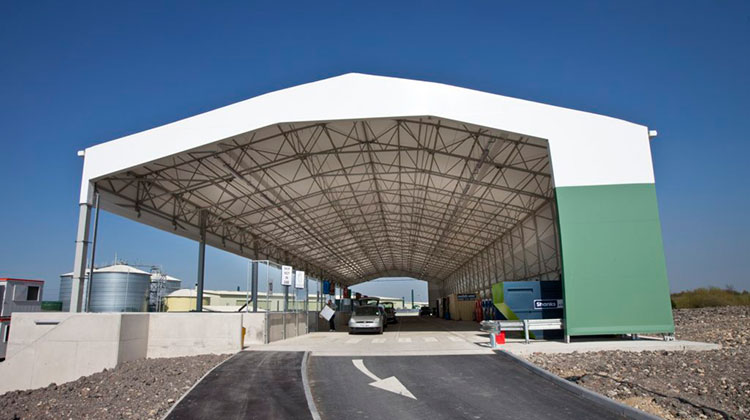

The RX3500 Economical Architectural Membrane is often used in various specific application scenarios, such as small and medium-sized art forms, umbrella-type building roofs, tensile car sheds, small and medium-sized air dome venues, small and medium-sized liquid & gas storage tanks, and small and medium-sized steel beam structured warehouses.

Item	Standard	Unit	Result
Weight	GB/T 4669-2008	g/m2	900
Thickness	GB/T3820-1997	mm	0.65
Tensile Strength	DIN53354	N/5CM	3500/3500
Tear Strength	DIN53363	N	550/500
Adhesion Strength	DIN53357	N/5CM	110
Transmittance	FZ/T 01009-2008	%	9±3
Temperature	-	℃	-40 ~ +70
Flame Retardant	DIN4102	B1
Surface Treatment	-	PMMA
Other	Anti-UV, Anti-Mildew
The above are the technical parameters for the standard configuration of the product. Information contained in this document is based on our general test result and is given in good faith. But we are unable to accept responsibility in respect to factors which are outside our knowledge or control.
Customization	Anti-Wicking
	Anti-UV Grade≥7
	Anti-Extreme Cold -50℃
	Anti-Named Fungus&Mildew Type Environmental Friendly Additives
	Eco–Friendly Treatment REACH, RoHS,6P (EN14372), 3P (EN14372)
	Surface Treatment PMMA/Acrylic, PVDF, TiO2 Silver Lacquer, Printable Lacquer
	Flame Retardant Options DIN4102-B1, NFPA701, NF P - M2 GB8624-B1, CA Title 19, FMVSS 302, ASTM E84 DIN4102-B2, GB8624-B2, Basic FR
