Gaoda Group’s RX4000 Architectural Membrane is a light weight architectural membrane material product suitable for small and medium-sized tensile membrane structures, air dome structures and building warehouse projects.
The RX4000 Architectural Membrane can meet the design and construction strength requirement of 4000N/5cm. The RX4000 Architectural Membrane is produced using the enhanced PVC architectural membrane material formula of Gaoda Group, ensuring the outdoor weather resistance of the material while being light weight, and meeting the requirements of the material as an architectural membrane material. The product can choose surface treatments such as PMMA and PVDF to further enhance the product's service life.

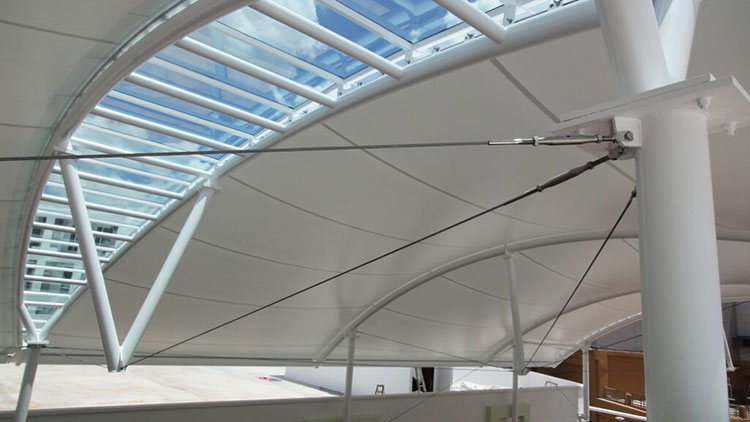

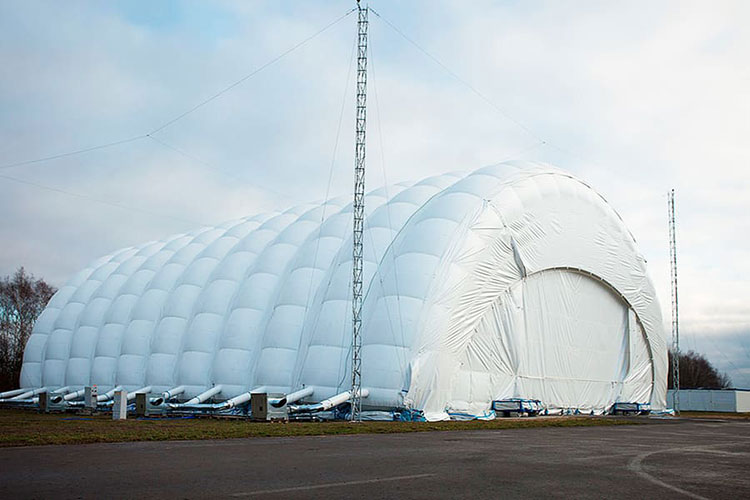

The RX4000 Architectural Membrane is often used in various specific application scenarios, such as small and medium-sized art forms, umbrella-type building roofs, tensile car sheds, small and medium-sized air dome venues, small and medium-sized liquid & gas storage tanks, and small and medium-sized steel beam structured warehouses.
Item | Standard | Unit | Result | |||||
Weight | GB/T 4669-2008 | g/m2 | 950 | |||||
Thickness | GB/T3820-1997 | mm | 0.75 | |||||
Tensile Strength | DIN53354 | N/5CM | 4000/4000 | |||||
Tear Strength | DIN53363 | N | 600/600 | |||||
Adhesion Strength | DIN53357 | N/5CM | 110 | |||||
Transmittance | FZ/T 01009-2008 | % | 6±3 | |||||
Temperature | - | ℃ | -40 ~ +70 | |||||
Flame Retardant | DIN4102 | B1 | ||||||
Surface Treatment | - | PMMA | ||||||
Other | Anti-UV, Anti-Mildew | |||||||
The above are the technical parameters for the standard configuration of the product. Information contained in this document is based on our general test result and is given in good faith. But we are unable to accept responsibility in respect to factors which are outside our knowledge or control. |
||||||||
Customization | Anti-Wicking | |||||||
Anti-UV Grade≥7 |
||||||||
Anti-Extreme Cold -50℃ |
||||||||
Anti-Named Fungus&Mildew Type Environmental Friendly Additives |
||||||||
Eco–Friendly Treatment REACH, RoHS,6P (EN14372), 3P (EN14372) |
||||||||
Surface Treatment PMMA/Acrylic, PVDF, TiO2 Silver Lacquer, Printable Lacquer |
||||||||
Flame Retardant Options DIN4102-B1, NFPA701, NF P - M2 GB8624-B1, CA Title 19, FMVSS 302, ASTM E84 DIN4102-B2, GB8624-B2, Basic FR |
