RX9999 High Strength Architectural Membrane
  • RX9999 High Strength Architectural MembraneRX9999 High Strength Architectural Membrane
  • RX9999 High Strength Architectural MembraneRX9999 High Strength Architectural Membrane
  • RX9999 High Strength Architectural MembraneRX9999 High Strength Architectural Membrane

RX9999 High Strength Architectural Membrane

RX9999 High Strength Architectural Membrane is an architectural membrane material product with a tensile strength of 10000N/5cm produced for ultra-high design and construction strength projects.

Send Inquiry

Product Description

The RX9999 High Strength Architectural Membrane adopts ultra-high strength Panama woven fabric, combined with upgraded architectural membrane formula and strengthened surface treatment process, making the product have excellent outdoor weather resistance performance, greatly improving the service life of the product.

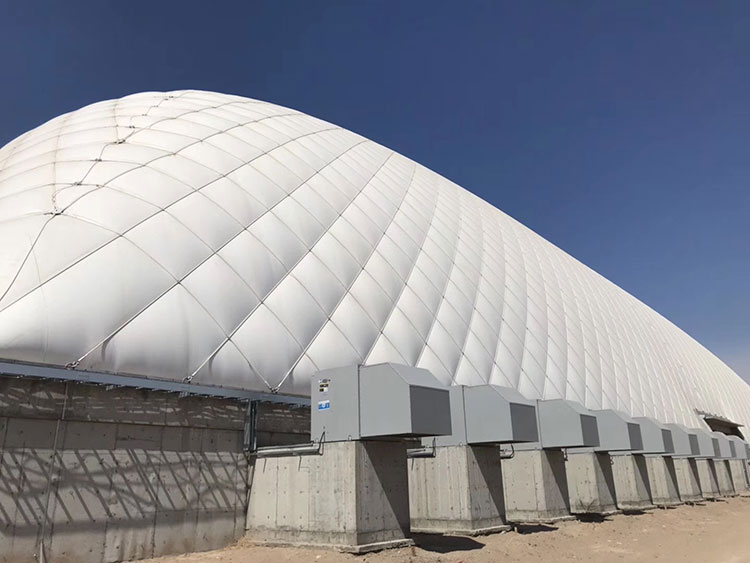

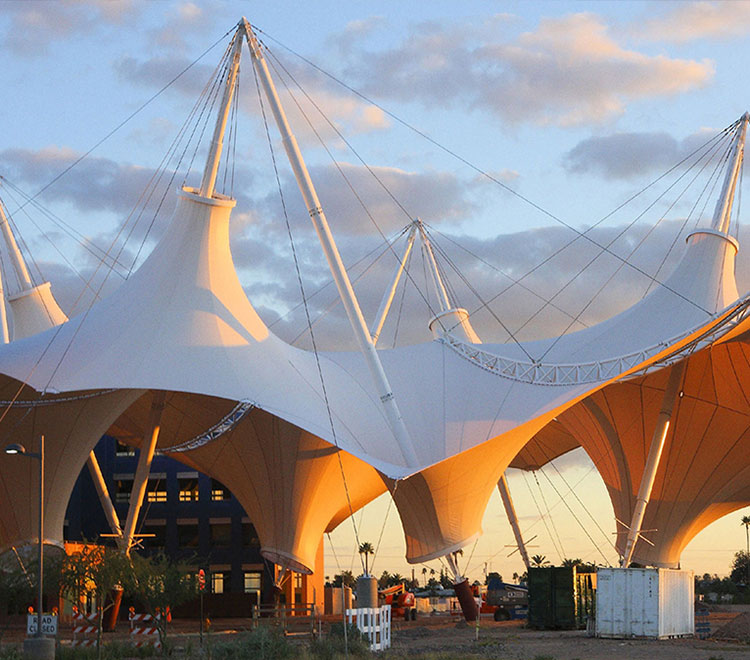

The RX9999 High Strength Architectural Membrane is often used as a architectural membrane material for large air dome structures, large tensile membrane structures, and large and medium-sized internal pressure structures.




Item Standard Unit Result
Weight GB/T 4669-2008 g/m2 1550
Thickness GB/T3820-1997 mm 1.25
Tensile Strength DIN53354 N/5CM 10000/9500
Tear Strength DIN53363 N 1500/1500
Adhesion Strength DIN53357 N/5CM 120
Transmittance FZ/T 01009-2008 % 6±3
Temperature -  -40 ~ +70
Flame Retardant DIN4102 B1
Surface Treatment - PVDF
Other Anti-UV, Anti-Mildew
The above are the technical parameters for the standard configuration of the product.
Information contained in this document is based on our general test result and is given in good faith.
But we are unable to accept responsibility in respect to factors which are outside our knowledge or control.
Customization Anti-Wicking
Anti-UV Grade≥7
Anti-Extreme Cold -50℃
Anti-Named Fungus&Mildew Type
Environmental Friendly Additives
 Eco–Friendly Treatment
REACH, RoHS,6P (EN14372), 3P (EN14372)
 Surface Treatment
PMMA/Acrylic, PVDF, TiO2
Silver Lacquer, Printable Lacquer
 Flame Retardant Options
DIN4102-B1, NFPA701, NF P - M2
GB8624-B1, CA Title 19, FMVSS 302, ASTM E84
DIN4102-B2, GB8624-B2, Basic FR
