RX2500C High Transmittance Architectural Membrane

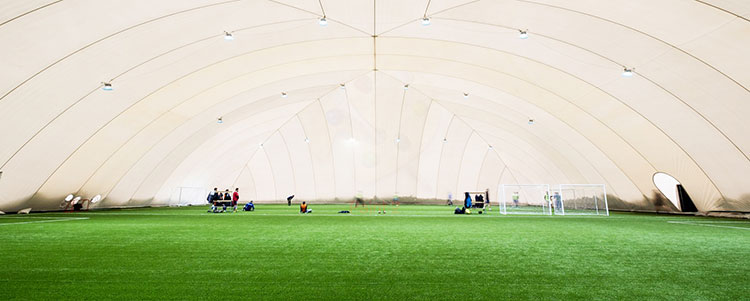

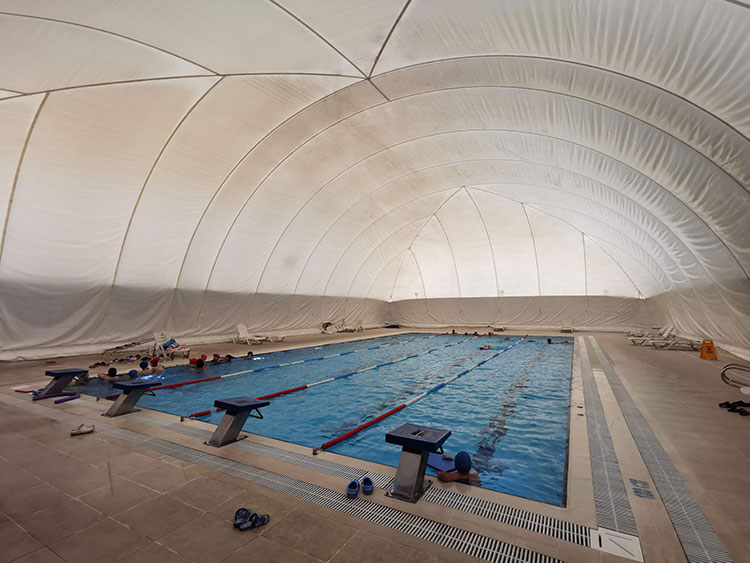

RX2500C High Transmittance Architectural Membrane is a membrane product used as the inner membrane of air dome structures. Gaoda Group is an industry leader and model company that has achieved ISO9001 accreditation.

Send Inquiry

Product Description

The RX2500C High Transmittance Architectural Membrane is made of woven fabric suitable for high transparency performance, and is produced using the PVC formula of high transparency architectural membrane specially developed by Gaoda Group. The RX2500C High Transmittance Architectural Membrane has characteristics such as high transparency, high strength, low temperature resistance, wear resistance and scratch resistance. Combined with surface treatments such as PMMA and PVDF, it can further enhance the service life of the product as an architectural membrane material.

Item	Standard	Unit	Result
Weight	GB/T 4669-2008	g/m2	650
Thickness	GB/T3820-1997	mm	0.51
Tensile Strength	DIN53354	N/5CM	2500/2500
Tear Strength	DIN53363	N	300/300
Adhesion Strength	DIN53357	N/5CM	100
Transmittance	FZ/T 01009-2008	%	25
Temperature	-	℃	-40 ~ +70
Flame Retardant	DIN4102	B2
Surface Treatment	-	PMMA
Other	Anti-UV, Anti-Mildew
The above are the technical parameters for the standard configuration of the product. Information contained in this document is based on our general test result and is given in good faith. But we are unable to accept responsibility in respect to factors which are outside our knowledge or control.
Customization	Anti-Wicking
	Anti-UV Grade≥7
	Anti-Named Fungus&Mildew Type Environmental Friendly Additives
	Eco–Friendly Treatment REACH, RoHS,6P (EN14372), 3P (EN14372)
	Surface Treatment PMMA/Acrylic, PVDF
	Flame Retardant Options ASTM E84, DIN4102-B2, GB8624-B2, Basic FR
